Surface slitting and rewinding machine for paper straw,ribbon, PE film, paper
Feature:
This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge separate and cut material according to different requirements during production.
Automatic EPC for unwinding, photocell is suitable for tracking the edge of transparent material and printed material.
Equipped with magnetic powder brake for unwinding tension control. Magnetic clutch control for rewinding tension control. It can be equipped with rim charge conveying or rewinding device
The overall design of the machine with high efficiency, high precision, high reliability as the basic starting point, combined twenty years of experience and cutting machine manufacturing technology, and many other advantages. So that customers really appreciate the high quality, low cost cutting machine of superior performance.
Specification:
| Model | ZKF-900 |
| Slitting Material | Film, Paper Roll 60-250 gram, Nonwoven, Ribbon, etc roll material |
| Slitting Width | 5-900 mm |
| Unwinding Diameter | 600mm , 6" Air shaft (154mm) |
| Rewinding Diameter | 2X400mm, 6" Air shaft (154mm) |
| Machine Speed | 180m/min |
| Slitting Speed | 160m/min(According to different material) |
| Main Motor | 3kw frequency conversion motor |
| Fan for waste edge | 1.1KW 3Phase |
| Transmission | Belt |
| Guide Roller | ￠80 Hard Aluminum Alloy |
| Machine Construction | Alloy Iron |
| Power Supply | 3 Phase 4 wires, 380V (According to customer) |
| Web guide scope | 120mm Accuracy:±0.3mm |
| Machine Weight | 3000KG |
Contacts:
Machine picture:

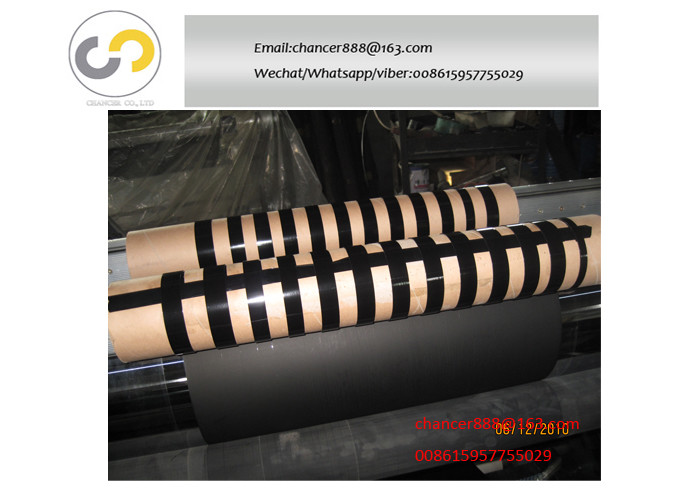

Sample picture:
|
|
